Những điều bạn cần biết về Mainboard GIGABYTE Z390 GAMING X
Một trong những dòng mainboard - bo mạch chủ phổ thông ở Việt Nam cho máy tính bàn chính là Gigabyte. Và chiếc mainboard chúng tôi giới thiệu ở đây là Mainboard GIGABYTE Z390 GAMING X – một linh kiện máy tính không thể thiếu.
>> Xem thêm: Mainboard Gigabyte GA-B360M Aorus Gaming 3, Mainboard Gigabyte GA-B360 Aorus Gaming 3

Chiếc bo mạch chủ main board chính hãng này sẽ hỗ trợ các bộ vi xử lý Intel Core thế hệ 9 và hỗ trợ Ram DDR4 Dual Channel Non – ECC Unbuffered. Nó còn được điều khiển bởi điện năng mới nhất với 10+2 pha.
Tụ âm thanh của bo mạnh có chất lượng cao, khử nhiễu tín hiệu tốt và có đèn LED. Độ tương thích của mainboard intel tương đối cao với chuẩn lưu trữ M.2, NVMe, PCle Gen3 x4 22110.

Không chỉ vậy, bo mạch chủ - Mainboard GIGABYTE Z390 GAMING X còn sử dụng Smart Fan 5 nên đem lại hiệu quả tản nhiệt cao mà tốn ít điện năng. Cổng Lan của bo mạch chủ có khả năng kiểm soát băng thông.
Cùng với đó, cổng Intel Thunderbolt 3 AIC có tốc độ ánh sáng và chiếc Mainboard Gigabyte này sẽ luôn sẵn sàng sử dụng Intel Optance. Hơn hết là nó tích hợp thêm cả ÚB 3.1 thế hệ 2 Type –A + Type –C.
>> Tin tức liên quan: 5 yếu tố cần chú ý khi chọn mua mainboard cho PC

Thông số kỹ thuật của Mainboard GIGABYTE Z390 GAMING X
Tên gọi
|
Gigabyte Z390 Gaming X
|
CPU hỗ trợ
|
- Supports 9th and 8th Gen Intel® Core™ Processors (Socket 1151v2)
|
Chipset / Socket
|
Intel® Z390
|
Bộ nhớ (RAM)
|
- 4 x DDR4 DIMM sockets supporting up to 64 GB of system memory
- Dual channel memory architecture
- Support for DDR4 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2800(O.C.) / 2666 / 2400 / 2133 MHz memory modules
- Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
- Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
- Support for Extreme Memory Profile (XMP) memory modules
|
Công nghệ đa GPU
|
- Support for AMD Quad-GPU CrossFire™ and 3-Way/2-Way AMD CrossFire™ technologies
|
Khe cắm mở rộng
|
- 1 x PCI Express x16 slot, running at x16 (PCIEX16)
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
- 1 x PCI Express x16 slot, running at x4 (PCIEX4)
- 4 x PCI Express x1 slots
(All of the PCI Express slots conform to PCI Express 3.0 standard.)
- 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support) (M2A)
- 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support, prepared for Intel® Hybrid SSD) (M2M)
- 6 x SATA 6Gb/s connectors
|
LAN / Wireless
|
Intel® GbE LAN chip (10/100/1000 Mbit) |
Âm thanh
|
- Realtek® ALC892 codec
- High Definition Audio
- 2/4/5.1/7.1-channel
- Support for S/PDIF Out
|
Cổng kết nối (Internal)
|
- 1 x 24-pin ATX main power connector
- 1 x 4-pin ATX 12V power connector
- 1 x 8-pin ATX 12V power connector
- 1 x CPU fan header
- 3 x system fan headers
- 1 x RGB LED strip header
- 6 x SATA 6Gb/s connectors
- 2 x M.2 Socket 3 connectors
- 1 x front panel header
- 1 x front panel audio header
- 1 x S/PDIF Out header
- 1 x USB 3.1 Gen 1 header
- 1 x USB 2.0/1.1 header
- 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
- 1 x Thunderbolt™ add-in card connector
- 1 x serial port header
- 1 x Clear CMOS jumper
|

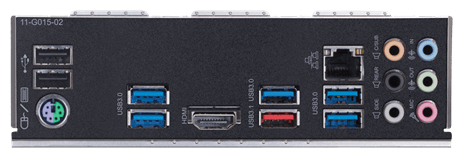

Cổng kết nối (Back Panel)
|
- 1 x PS/2 keyboard/mouse port
- 1 x HDMI port
- 1 x USB 3.1 Gen 2 Type-A port (red)
- 5 x USB 3.1 Gen 1 ports
- 2 x USB 2.0/1.1 ports
- 1 x RJ-45 port
- 6 x audio jacks
|
Công nghệ độc quyền
|
- Support for APP Center
* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. 3D OSD @BIOS AutoGreen Cloud Station EasyTune Easy RAID Fast Boot Game Boost ON/OFF Charge Platform Power Management RGB Fusion Smart Backup Smart Keyboard Smart TimeLock Smart HUD Smart Survey System Information Viewer USB Blocker USB DAC-UP 2
- Support for Q-Flash
- Support for Xpress Install
|
Phụ kiện đi kèm
|
- Norton® Internet Security (OEM version)
- cFosSpeed
|
Hệ điều hành khuyến nghị
|
• Windows® 10 64-bit
|
Chuẩn kích cỡ
|
• ATX Form Factor
|
