Những điều bạn cần biết về Mainboard Gigabyte GA-B360M Aorus Gaming 3
Một trong những dòng mainboard - bo mạch chủ phổ thông ở Việt Nam cho máy tính bàn chính là Gigabyte. Và chiếc mainboard chúng tôi giới thiệu ở đây là Mainboard Gigabyte GA-B360M Aorus Gaming 3– một linh kiện máy tính không thể thiếu.
>> Xem thêm: Mainboard Gigabyte GA-B360 Aorus Gaming 3

Bao bì được thiết kế mang phong cách đặc trưng của dòng AORUS với một biểu tượng chim ưng chiếm phần lớn hộp, đi kèm ngoài tên thương phẩm còn có các biểu tượng chỉ dẫn đặc tả có trên sản phẩm như hỗ trợ loạt vi xử lý Core thế hệ 8 của Intel, tính năng RGB Fusion, công nghệ Smart Fan III, khả năng nâng cấp mô đun WiFi. Mặt sau được dành cho việc quảng bá các tính năng đặc sắc và nổi bật có trên bo mạch chủ này.

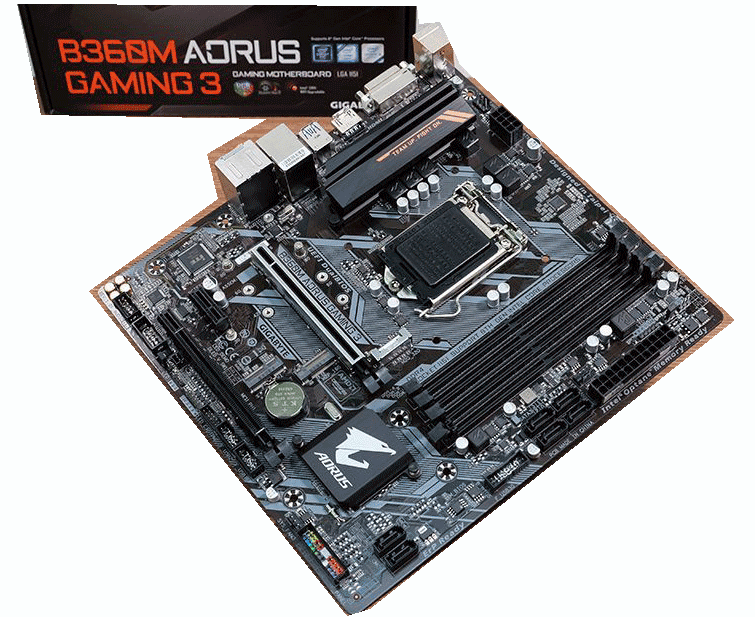

Mainboard Gigabyte B360M AORUS Gaming 3 là một bo mạch chủ form Micro ATX hướng đến các game thủ phổ thông có ngân sách hạn chế nhưng vẫn đáp ứng đầy đủ những tiêu chí cần có ở một hệ thống hiện đại.
Cụm VRM cho CPU bao gồm 4+2 phase điện, được điều khiển bởi bộ điều khiển intersil 95866. Dù là thuộc phân khúc tầm trung – phổ thông, bo mạch chủ vẫn đề xuất sử dụng đầu cắm nguồn CPU 8-pin.
Chiếc main board chính hãng có bốn khe cắm hỗ trợ bộ nhớ DDR4 kênh đôi mặc định 2666MHz và có thể cao hơn với các bộ nhớ tương thích XMP.

Về kết nối mở rộng trên GIGABYTE B360M AORUS GAMING 3 chúng ta có 2 khe cắm x16 trong đó một khe hoạt động ở đầy đủ băng thông x16 và được bọc thép gia cường bảo vệ, khe còn lại chỉ vận hành ở băng thông x4. Bo mạch chủ này chỉ hỗ trợ cấu hình đa card đồ họa theo công nghệ CrossFire của AMD. Ngoài ra, chúng ta còn có 1 khe cắm PCIe x1 cho các mở rộng khác như sound card… Cả ba khe cắm này đều thuộc tiêu chuẩn PCIe 3.0.
Về lưu trữ trên GIGABYTE B360M AORUS Gaming 3 sử dụng công nghệ mainboard intel cung cấp sẳn hai khe cắm M.2 hỗ trợ giao tiếp lưu trữ NVMe PCIe SSD và M.2 SSD. Dĩ nhiên là seri chipset B360 vẫn hỗ trợ công nghệ Intel Optane Memory.

Bổ sung cho hai giao tiếp M.2 là 6 kết nối SATA 3 6.0Gbps truyền thống.
Ngoài hai khe cắm M.2 cho lưu trữ, GIGABYTE B360M AORUS GAMING 3 còn có một khe cắm M.2 thứ ba nhưng chỉ dành cho card mở rộng WiFi Intel CNVi
Chipset cầu nam được trang bị một phiên tản nhiệt đơn giản với một logo AORUS bên trên. Bo mạch chủ này không tích hợp đèn nền RGB tại tản nhiệt MosFET cũng như chipset cầu nam.

Bên cạnh các kết nối tiêu chuẩn ở Back Panel I/O, Mainboard Gigabyte GA-B360M Aorus Gaming 3 chỉ cung cấp thêm cổng kết nối USB3.1 Gen 2 Type-A, đáng tiếc khi nó không trang bị kết nối USB3.1 Gen2 Type-C thời thượng.

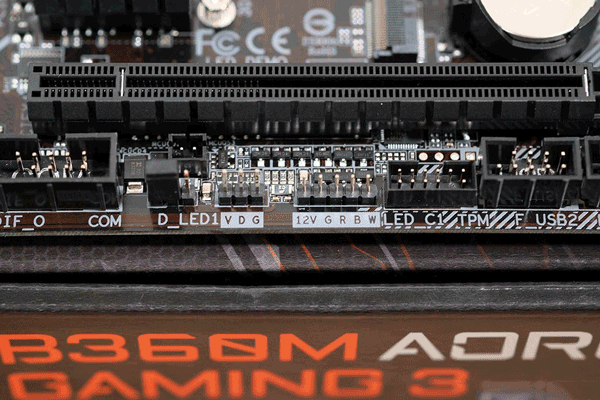

Một số công nghệ, tính năng khác trên Mainboard Gigabyte GA-B360M Aorus Gaming 3 như hỗ trợ cả hai tiêu chuẩn kết nối đèn nền thế hệ mới là đèn nền WRGB và Digital RGB.

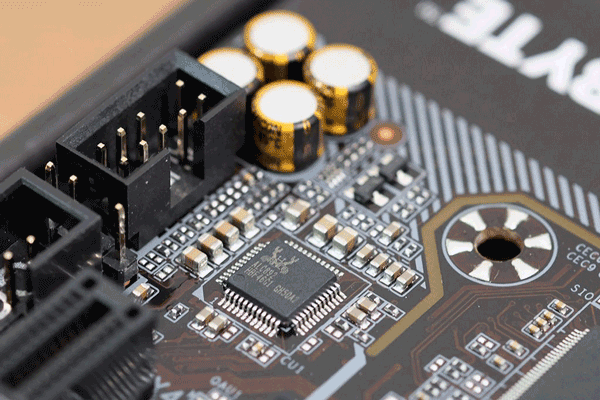

Bộ điều khiển âm thanh Real ALC892 8-kênh cùng 4 tụ lọc âm chuyên dụng.
>> Tin tức liên quan: 5 yếu tố cần chú ý khi chọn mua mainboard cho PC
Thông số kỹ thuật của Mainboard Gigabyte GA-B360M Aorus Gaming 3
CPU |
- Support for 8th Generation Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium®processors/Intel® Celeron® processors in the LGA1151 package
- L3 cache varies with CPU
(Please refer "CPU Support List" for more information.) |
Chipset |
- Intel® B360 Express Chipset
|
Bộ nhớ |
- 4 x DDR4 DIMM sockets supporting up to 64 GB of system memory
- Dual channel memory architecture
- Support for DDR4 2666/2400/2133 MHz memory modules
- Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
- Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
- Support for Extreme Memory Profile (XMP) memory modules
* To support 2666 MHz or XMP memory, you must install an 8th Generation Intel® Core™ i7/i5 processor.
(Please refer "Memory Support List" for more information.)
|
Card đồ họa tích hợp |
Integrated Graphics Processor-Intel® HD Graphics support:
- 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
* The DVI-D port does not support D-Sub connection by adapter.
- 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz
* Support for HDMI 1.4 version and HDCP 2.2.
Maximum shared memory of 1 GB |
Audio |
- Realtek® ALC892 codec
- High Definition Audio
- 2/4/5.1/7.1-channel
- Support for S/PDIF Out
|
LAN |
- Intel® GbE LAN chip (10/100/1000 Mbit)
|
Khe cắm mở rộng |
- 1 x PCI Express x16 slot, running at x16 (PCIEX16)
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
- 1 x PCI Express x16 slot, running at x4 (PCIEX4)
- 1 x PCI Express x1 slot
(All of the PCI Express slots conform to PCI Express 3.0 standard.)
- 1 x M.2 Socket 1 connector for an Intel® CNVi wireless module only (CNVI)
|
Giao diện bộ nhớ |
Chipset:
- 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 PCIe x4/x2 SSD support) (M2Q_32G)
- 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x2 SSD support) (M2P_16G)
- 6 x SATA 6Gb/s connectors
* Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors.
Intel® Optane™ Memory Ready |
USB |
Chipset:
- 1 x USB 3.1 Gen 2 Type-A port (red) on the back panel
- 5 x USB 3.1 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)
- 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
* The CNVi connector shares bandwidth with the F_USB2 header. When a Wi-Fi module is populated in the CNVi connector, one of the USB 2.0/1.1 ports routed to the F_USB2 header becomes unavailable.
|
Kết nối I/O bên trong |
- 1 x 24-pin ATX main power connector
- 1 x 8-pin ATX 12V power connector
- 1 x CPU fan header
- 3 x system fan headers
- 2 x digital LED strip headers
- 2 x digital LED strip power select jumpers
- 2 x RGB (RGBW) LED strip headers
- 6 x SATA 6Gb/s connectors
- 2 x M.2 Socket 3 connectors
- 1 x front panel header
- 1 x front panel audio header
- 1 x S/PDIF Out header
- 1 x USB 3.1 Gen 1 header
- 2 x USB 2.0/1.1 headers
- 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
- 1 x serial port header
- 1 x Clear CMOS jumper
|
Kết nối bảng phía sau |
- 1 x PS/2 keyboard/mouse port
- 1 x DVI-D port
- 1 x HDMI port
- 1 x USB 3.1 Gen 2 Type-A port (red)
- 3 x USB 3.1 Gen 1 ports
- 2 x USB 2.0/1.1 ports
- 1 x RJ-45 port
- 6 x audio jacks
|
Điều khiển I/O |
- iTE® I/O Controller Chip
|
Theo dõi phần cứng |
- Voltage detection
- Temperature detection
- Fan speed detection
- Overheating warning
- Fan fail warning
- Fan speed control
* Whether the fan speed control function is supported will depend on the cooler you install.
|
BIOS |
- 2 x 128 Mbit flash
- Use of licensed AMI UEFI BIOS
- Support for DualBIOS™
- PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
|
Tính năng duy nhất |
- Support for APP Center
* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. 3D OSD @BIOS AutoGreen Cloud Station EasyTune Fast Boot Game Boost ON/OFF Charge Platform Power Management RGB Fusion Smart Backup Smart Keyboard Smart TimeLock Smart HUD System Information Viewer USB Blocker V-Tuner
- Support for Q-Flash
- Support for Xpress Install
|
Gói phần mềm |
- Norton® Internet Security (OEM version)
- cFosSpeed
|
Hệ điều hành |
- Support for Windows 10 64-bit
|
Hệ số khuôn |
- Micro ATX Form Factor; 24.4cm x 23.0cm
|
Ghi chú |
- Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
- Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.
|
